Extension of Transport Pipeline-Bound

remote_module

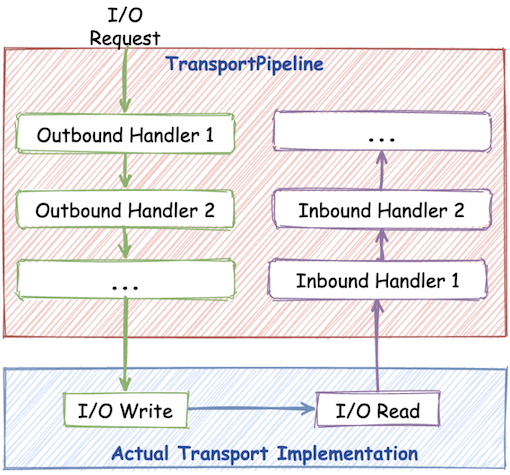

Transport Pipeline refers to Netty ChannelPipeline and provides Inbound and Outbound interfaces to support message or I/O event extensions. TLS, Traffic Limit, Transparent Transmission Processing can be extended based on In/OutboundHandler. As shown in the figure below, each BoundHandler is executed in series.

trans_pipeline

Extension API

// OutboundHandler is used to process write event.
type OutboundHandler interface {
	Write(ctx context.Context, conn net.Conn, send Message) (context.Context, error)
}

// InboundHandler is used to process read event.
type InboundHandler interface {
	OnActive(ctx context.Context, conn net.Conn) (context.Context, error)

	OnInactive(ctx context.Context, conn net.Conn) context.Context

	OnRead(ctx context.Context, conn net.Conn) (context.Context, error)

	OnMessage(ctx context.Context, args, result Message) (context.Context, error)
}

Default Extensions

  • Traffic Limit Handler of Server Side

    Kitex supports connection level and request level limiting. The purpose of limiting is to ensure service availability. When the threshold is reached, the request should be limited in time. And the purpose of implementing limit in transport layer is to limit traffic in a timely manner. The implementation is in limiter_inbound.go.

    • Limiting of Connection level implements OnActive(), OnInactive()
    • Limiting of Request level implements OnRead()
  • Metadata Transparent Transmission Handler

    Meta information transparent transmission is to transmit some RPC additional information to the downstream based on the transport protocol, and read the upstream transparent transmission information carried by transport protocol. The implementation is in transmeta_bound.go.

    • Write metainfo implements Write()
    • Read metainfo implements OnMessage()

    In order to make it more convenient to extend Metadata Transparent Transmission for users, Kitex defines the separately extension API MetaHandler.

    // MetaHandler reads or writes metadata through certain protocol.
    type MetaHandler interface {
    	WriteMeta(ctx context.Context, msg Message) (context.Context, error)
    	ReadMeta(ctx context.Context, msg Message) (context.Context, error)
    }


Customized BoundHandler Usage

  • Server Side

    option: WithBoundHandler

    svr := xxxservice.NewServer(handler, server.WithBoundHandler(yourBoundHandler))

  • Client Side

    option: WithBoundHandler

    cli, err := xxxservice.NewClient(targetService, client.WithBoundHandler(yourBoundHandler))
